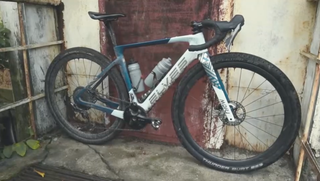

THE MORI AEROX – SPEED WITHOUT LIMITS

The Ultimate Aero Gravel Frame - Our research and development team have leveraged decades of aero road bike expertise, to create something truly extraordinary. Our state-of-the-art aero gravel frame has been meticulously engineered for race-winning speed, exceptional agility, and unmatched versatility across every terrain. The Mori AeroX disc frame incorporates many of the advanced features of the Elves Falath Pro, our renowned aero frame, delivering exceptional aerodynamics, handling and stiffness, ensuring optimal performance and control for the most demanding gravel courses.

Setting a New Standard in Gravel Performance – Elves Bikes have set a new benchmark in gravel bike racing by designing and manufacturing a durable, lightweight, performance-focused frame crafted from premium Toray Japanese carbon fibre T800-T1000. This cutting-edge material ensures the optimal strength-to-weight balance, whilst the advanced geometry of the Mori AeroX delivers confident, precision handling and superior climbing capabilities.

Engineered to Win – Like the Falath Pro, which is built for speed, our design team have refined and optimised the geometry resulting in a lower head tube angle and adjusted fork trail for enhanced stability on rough terrain. We have extended the reach and wheelbase, positioning riders to tackle challenging gravel courses whilst maintaining speed and control. With tyre clearance of 45c for 700c wheels and 50c for 650b wheels, riders can customise their set-up for added comfort and performance during long races or days in the saddle.

Compliance & Race winning Performance – Compatible with mechanical and electronic 10/11/12/13 speed groupsets including Di2 & AXS, the aero-inspired design of the Mori Aerox incorporates additional carbon fibre reinforcement of the bottom bracket and headstock, ensuring precise and efficient power transfer exactly where it's required. Through dedicated research and development, our team has achieved a perfect balance of rigidity and flexibility. The rear stays are designed to absorb shocks and vibrations from uneven gravel terrain, delivering all-terrain capability.

UDH Hanger Compatibility - The Mori Aerox is precision-engineered to fit the SRAM’s Universal Derailleur Hanger standard that simplifies compatibility by replacing countless options industry-wide. Designed for SRAM's full mount drivechain line-up that includes SRAM RED and XPLR AXS groupsets whilst remaining fully adaptable to other derailleur brands. The UDH pivots to protect your derailleur from chain jams, absorbs impacts, enhances shifting, and ensures perfect alignment across all drivetrains.

Sizes & Accessories – The Mori AeroX is available in sizes 46, 49, 52, 54, and 56. To ensure the perfect fit, please consult our comprehensive geometry and sizing guides for detailed recommendations. Each purchase includes essential components to enhance your setup, including headset bearings, two gear mech hangers, 7mm x 7mm and 7mm x 10mm seat clamps, and a cable routing stem adapter for seamless installation of standard handlebars.

Additionally, we provide a choice of a Senicx ceramic T47 bottom bracket, fully compatible with your groupset, for optimised performance. To further refine our customers choice, we offer seatpost options with either a 12mm or 25mm setback, ensuring a personalised and comfortable setup for every rider.

Custom Paint Finesse - Our ethos stems from a deep understanding of unmet customer needs, driving our strategic and inclusive decision to ensure that custom painted frames, celebrating individuality, remain highly accessible to all whilst offering seven standard colours to choose from.

Warranty - At Elves, your safety is our top priority, setting our brand apart by consistently exceeding industry standards. Like all our high-quality products, the Mori AeroX with a 2-year warranty, and saddles are covered for one year.

Inspired by you and created by us, Elves Bikes are committed to producing exceptional quality frames and bikes at affordable prices globally. Our aim is to challenge the price point for performance and close the industry gap, ensuring that our riders are not making the tough choice between quality or cost, we assure our customers of both.

Colours
Black & Chameleon (Black-Red)
Litchi White & Vason Green
Cement Gray & Lemon Yellow
White & Black
Silver & Iris Blue
Glacier Blue & Gold-dust Blue
Blazing Orange & Wistaria

CUSTOM COLOUR ONLINE DESIGN WEBSITE. At no extra charge.

Go wild and design you own custom painted frame. Use the Elves online website. Design as many colour combinations as you like and when you're happy select the BUY button. Your mock-up will be sent to us at Elves Australia, and we'll send you a payment link. OR just use the custom colour option here and we'll work with you (email us at info@elvesbikesaustralia.com.au) to sort your custom design. We are currently working hard to load the Mori frame template to the website. While that's happening just use the EVO+ template to design your Mori frame.
Jump to the website here.

MORI AeroX

FRAME:

FULL-CARBON (TORAY T800+T1000 )

GEOMETRY: PRO

SEAT CLAMP: INTEGRATED

HEADSET BEARING: 1-1/2”X8mm LOWER,1-1/2” X8mm UPPER

BRAKE: FLAT MOUNT

BOTTOM BRACKET: T47 THREADED BOTTOM

ELECTRIC DRIVETRAIN: Di2 & E-TAP COMPATIBLE

EPS+LATEX BLADDER MOULDING TECHNIQUE

FULL INTEGRATED CABLE ROUTING

THRU AXLE DIMENSION: M12X1.5X170 mm(142mm)

MAX TYRE SIZE: 700CX45C/605BX50C

MAX ROTOR SIZE: UP TO 160MM

FORK:

FULL-CARBON FORK

OFFSET: 45mm

BRAKE: FLAT MOUNT

STEER TUBE LENGTH: 300mm

THRU AXLE DIMENSION: M12X1.5X121 mm

MAX ROTOR SIZE: UP TO 160MM

Seat Post:

LENGTH: 350mm and 400mm

SINGLE BOLE PIVOT PRECISE ADJUSTMENTS

SEATPOST: FULL-CARBON

SADDLE CLAMP: 7X7mm AL RAIL CLAMP AND 7X10mm CARBON RAIL CLAMP

OFFSET:12mm AND 25mm SEATPOST AVAILABLE

Certification:

UCI APPROVED PENDING

BOTH EN 14766 AND ISO 4210-6:2023

Accessories:

T47-24R(Shimano), T47-29R(SRAM DUB), T47-30R (ROTOR) AVAILABLE

ELVES HEADSET

INTEGRATED HANDLEBAR SPACERS 3pcsX10mm

UDH DERAILLEUR HANGER X2

CABLE ROUTING ADAPTER SPACER FOR REGULAR STEM

FRONT DERAILLEUR MOUNTING HOLES COVER

Size：

46/49/52/54/56

Colors:

Black&Chameleon(Black-Red)

Cement Gray & Lemon Yellow

Blazing Orange & Wistaria

Litchi White & Vason Green

Glacier Blue & Gold-Dust Blue

White & Black

Silver & Iris Blue

Weight(+/- 15g):

46 FRAME WEIGHT: 960g (UNPAINTED W/O METAL PARTS)

49 FRAME WEIGHT: 990g (UNPAINTED W/O METAL PARTS)

52 FRAME WEIGHT: 1020g (UNPAINTED W/O METAL PARTS)

54 FRAME WEIGHT: 1050g (UNPAINTED W/O METAL PARTS)

56 FRAME WEIGHT: 1080g (UNPAINTED W/O METAL PARTS)

FORK WEIGHT: 428g(W/O THRU AXLE)

SEATPOST WEIGHT: 188g(12mm offset)/220g(25mm offset)

FRONT THRU AXLE WIGHT:43g

REAR THRU AXLE WIGHT: 30g

Single color paint weight: 80g

Two-tone paint weight：120g

Three-tone paint weight: 180g

TORQUE VALUES:

SADDLE RAIL BOLTS:10-12Nm

INTEGRATED SEATCLAMP:10-12Nm

STEM (STEERER):6Nm

STEM (HANDLEBAR):6Nm

FRONT DERAILLEUR HANGER:3Nm

UDH BOLT:25Nm

WATER BOTTLE CAGE BOLTS:3Nm

FRONT/REAR CALIPER: 6Nm

FORK Compression Plug：10Nm

FRONT/REAR Thru Axle: 6Nm

Computer Mount:3Nm

TOP BAG BOLTS:3Nm
