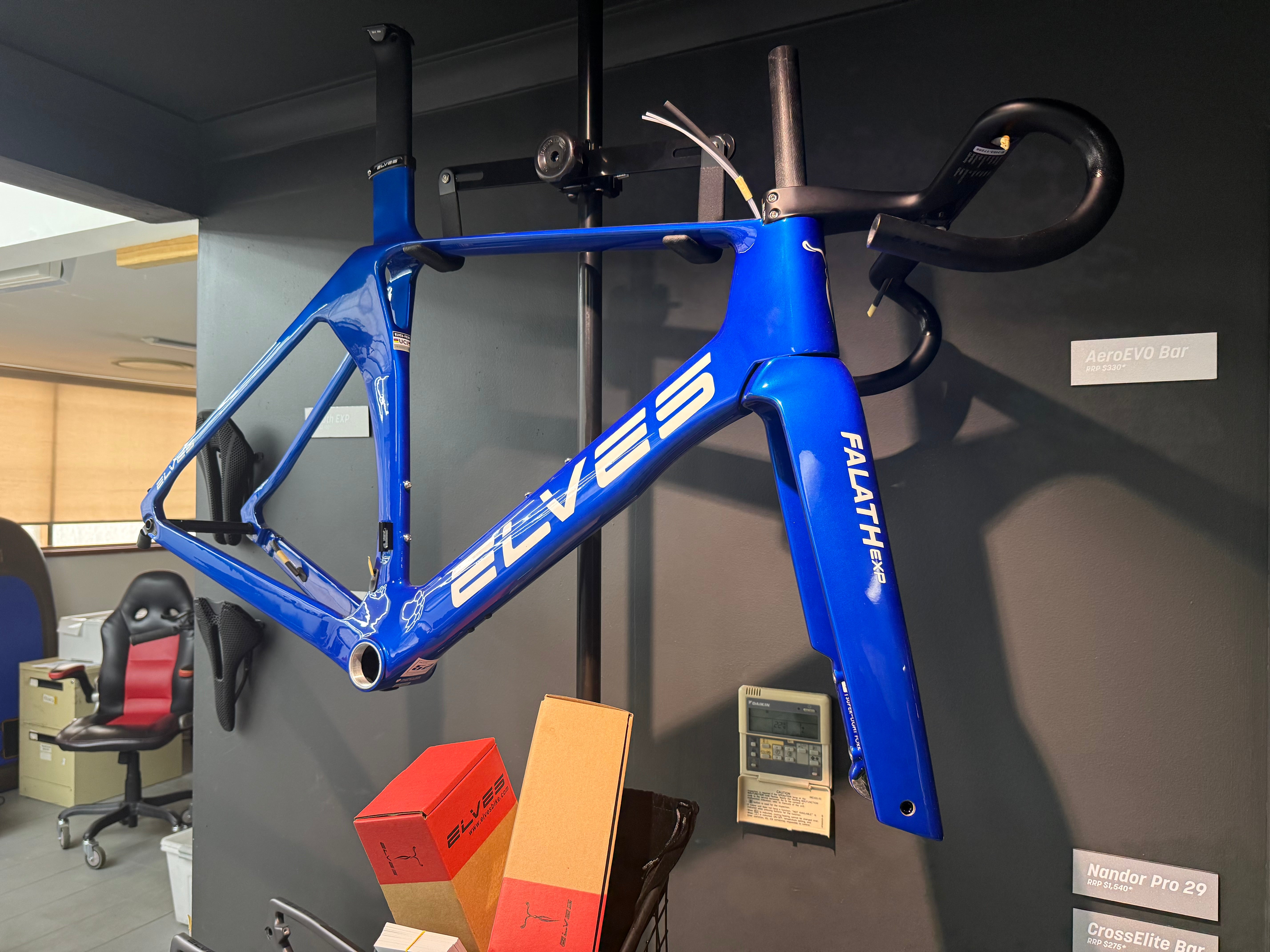

This is an Unused Demo frame, never been built up.

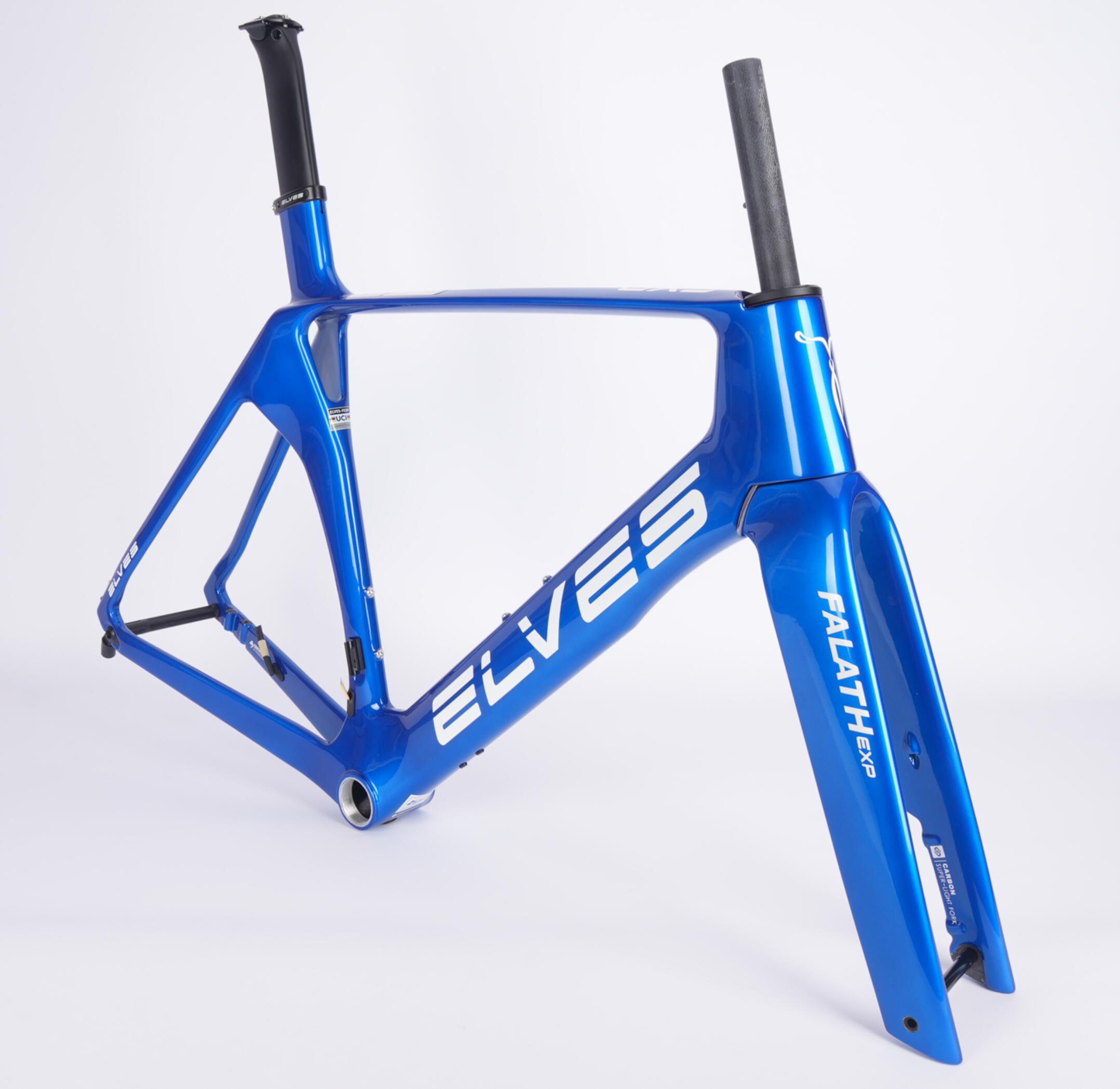

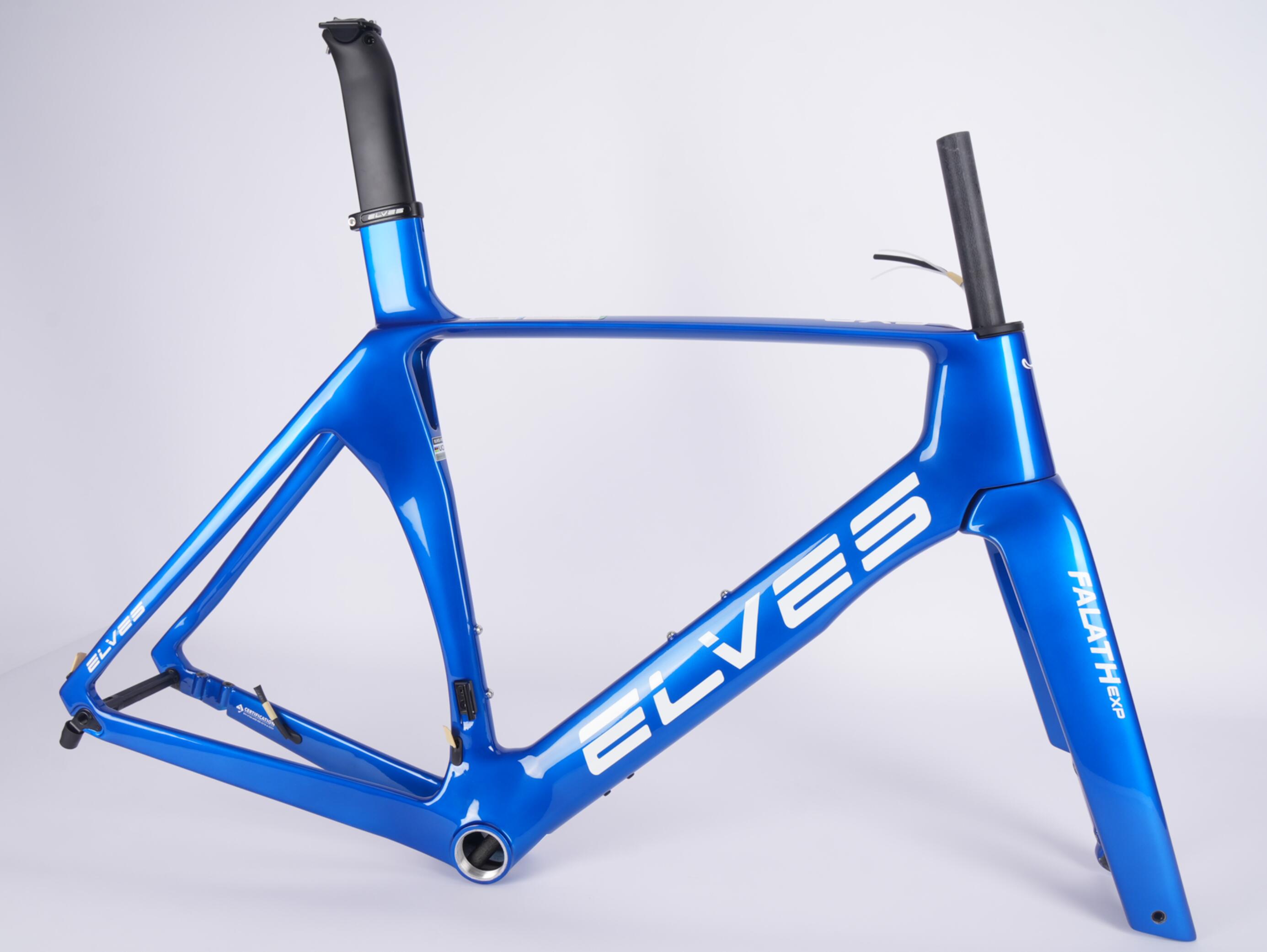

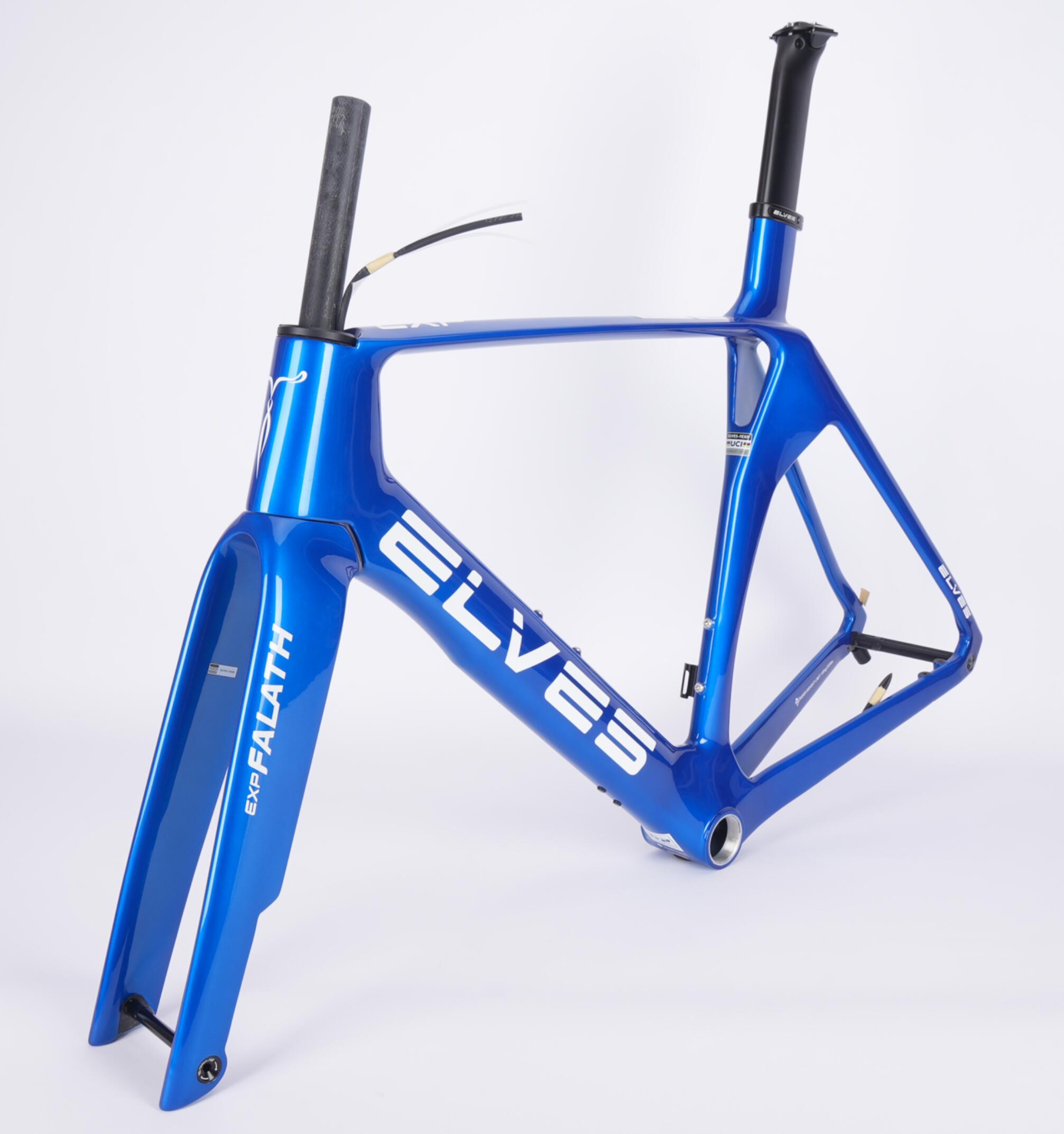

Custom Paint, Transparent Blue with white decals.
Seatpost and accessories included.
In Stock. Free local (Brookvale NSW) Pickup available. Contact us for more information.
Complete Builds are available with this frame. Let us know what you'd like.

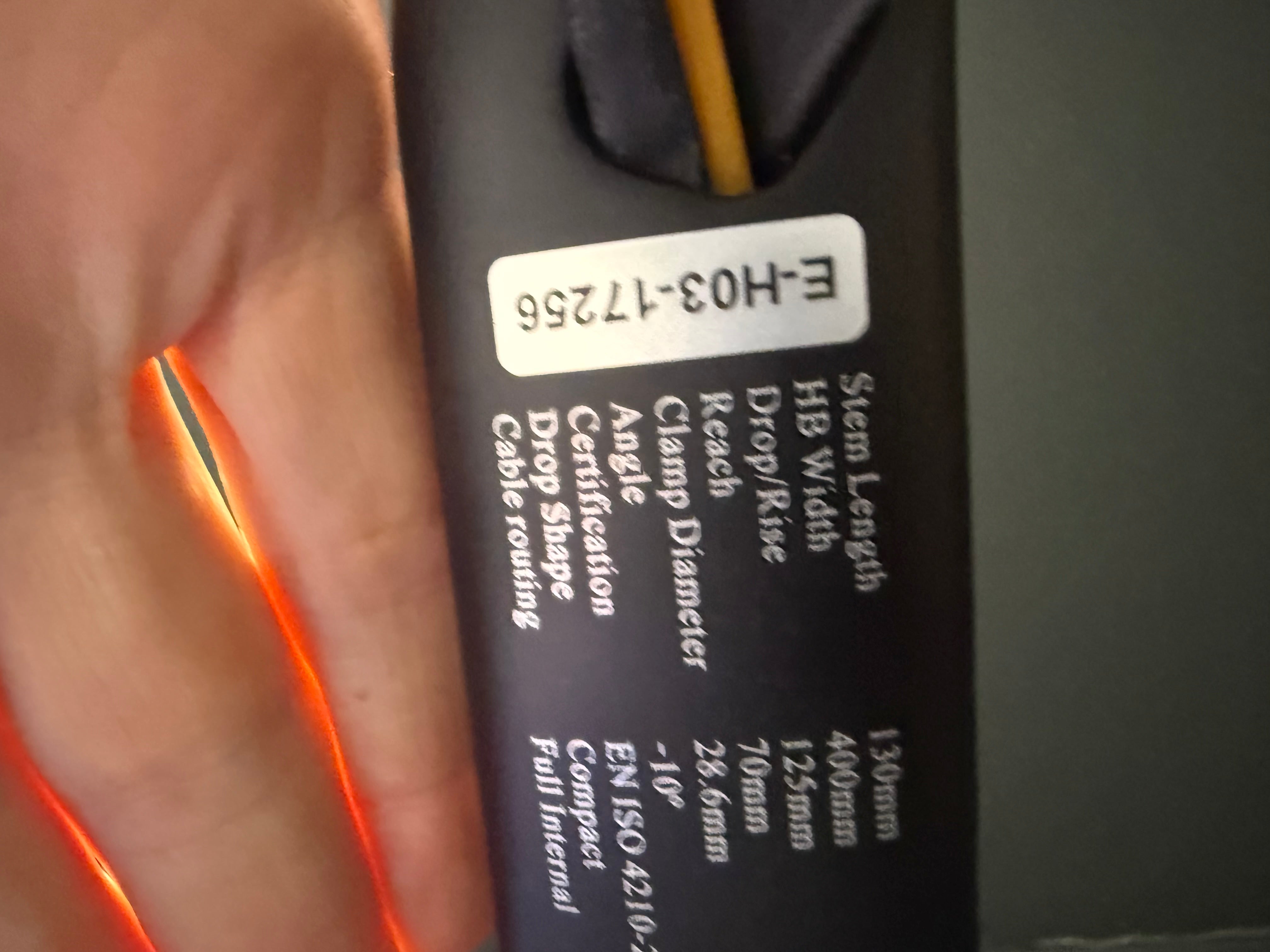

Handle bars are additional, this bike has 400/130mm at half price.
Building upon the global success of the Falath Evo, Elves Bikes research and development team have launched their latest aero frame, the Falath EXP utilising next-generation industry technology, with a focus on shock-absorbing performance, comfort, strength and aerodynamic efficiency.
At the core of the Falath EXP’s design philosophy sits an integrated aerodynamic suspension design of the rear seat stay. A topology optimisation algorithm is employed for frame structural design which simultaneously optimises both aerodynamic performance and suspension capabilities.
The Inverted Triangle Airflow Channel (ITAC), is a meticulously engineered rear triangle that is formed by the seat stay and seat tube creating an airflow channel that minimises wind resistance, reduces drag coefficient and turbulence, allowing riders to achieve improved overall performance.
Beyond aerodynamics, the inverted triangle structure creates controlled vertical flexible movement of the integrated seat post, whilst retaining superior structural strength, stability and stiffness distribution across the frame. In real world riding, this vertical movement is designed to absorb road vibrations, especially on uneven terrain, resulting in a smoother, more comfortable riding experience without the requirement to compromise stiffness & performance by incorporating unnecessary flex into the wider frame. To further enhance the EXP’s rider appeal, the frame has been designed with tyre clearance of up to 32c providing enhanced grip, comfort and speed on today’s roads.
Engineered with high-tensile Japanese Toray T800 carbon fibre, reinforced with T1000 in key performance areas such as the bottom bracket and headtube, and combined with its inverted triangle structure, the Falath EXP has been designed to optimise stress distribution, durability, aerodynamics and overall stiffness, resulting in superior power transfer in high-intensity riding conditions. To enhance the structural integrity of the frame, the Elves have utilised the EPS and latex bladder moulding process in the production of the Falath EXP. This advanced technique results in a smoother internal frame structure by eliminating folds, lines, and creases, ensuring more uniform walls and ultimately creating a stronger, more durable frame.
Click here to see the geometry and size charts
Falath EXP Specification Overview:
* Frame material: Today T800 & T1000 Carbon Fibre - EPS Mounding Technology
* Full internal cable routing* Max Tyre Clearance: 700cx32mm
* Rotor Size: 140mm or 160mm Not supplied
* Bottom Bracket: Supplied - Threaded T47 Senicx Ceramic in Shimano 24mm
* Gear Mech Hanger: Standard (not UDH)
* Thru-axles: Supplied - 100mm (front) & 142mm (rear)
* Seat post: Supplied - 10mm offset, 245mm in length, 190g, two way adjustable clamp (7x7mm & 7x10mm clamps supplied)
* Headset: Supplied
* Di2 battery mount: Supplied
* Brakes: Flat mount, rear 20mm depth (33mm bolts required - Shimano)
* Compatibility: Compatible with mechanical and electronic 10/11/12 speed groupsets inc Di2 & AXS (Di2 battery is housed in the down tube)
Approvals and Certification:
EN14766 & ISO 42100-6:2023 certified
UCI Approved
Weights (+/- 15g):

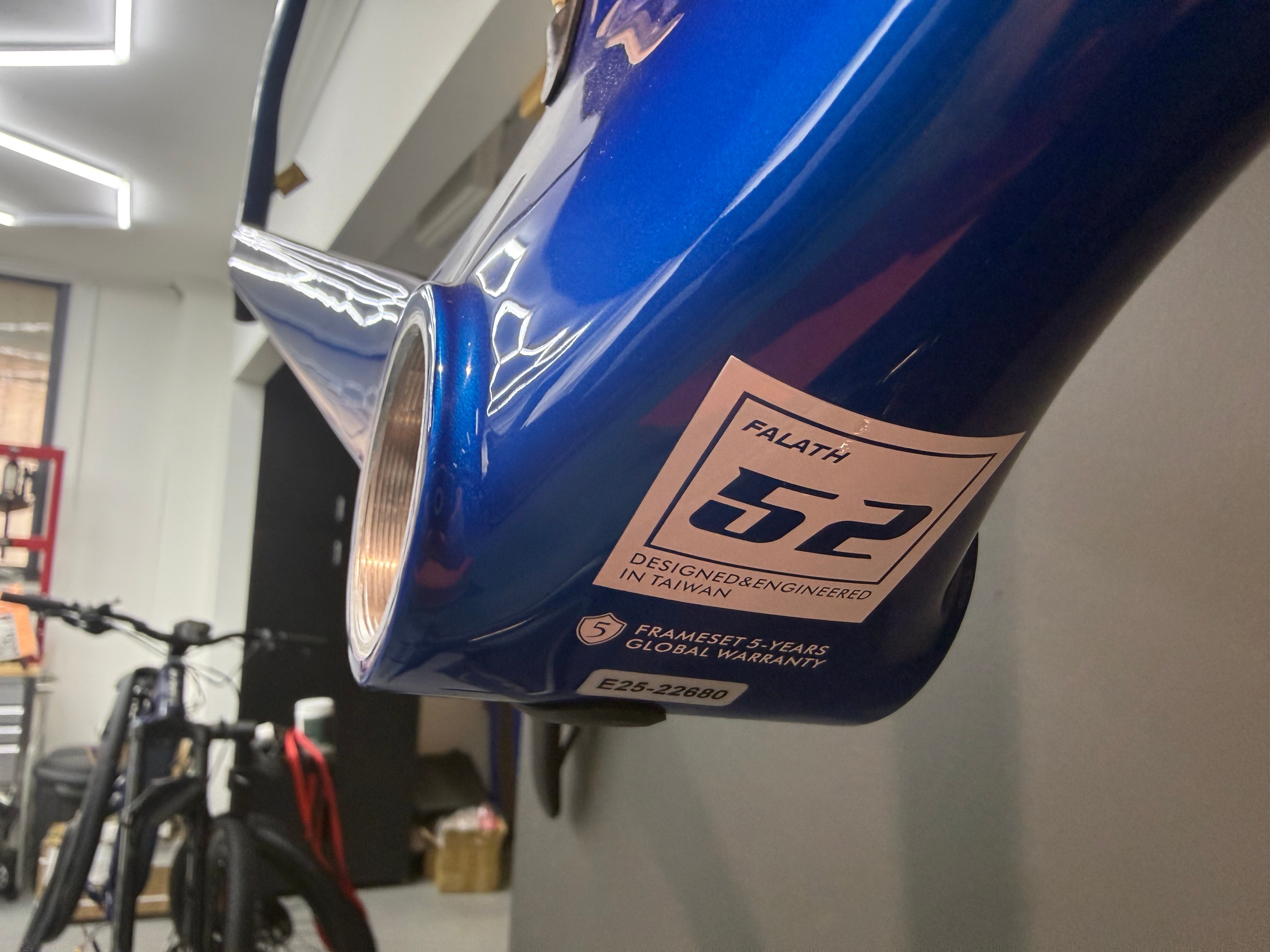

52 FRAME WEIGHT: 1220g (UNPAINTED W/O METAL PARTS)
FORK WEIGHT: 480g (W/O THRU AXLE)
SEATPOST WEIGHT: 190g WITH METAL PARTS(10mm offset)
FRONT THRU AXLE WEIGHT: 23g
REAR THRU AXLE WEIGHT: 28g
SEATPOST CLAMP: 16g
HEADSETS WEIGHT: 200g
FRAME METAL PARTS: 100g
Torque Values:
SADDLE RAIL BOLTS: 10-12Nm
SADDLE CLAMP BOLTS: 8-10Nm
STEM (STEERER): 6Nm
STEM (HANDLEBAR): 6Nm
FRONT DERAILLEUR HANGER: 3Nm
SEATPOST CLAMP: 8Nm
WATER BOTTLE CAGE BOLTS: 3Nm
FRONT/REAR CALIPER: 6Nm
FORK COMPRESSION PLUG: 10-12Nm
FRONT/REAR Thru Axle: 6Nm
COMPUTER MOUNT BOLTS: 3Nm
Seatpost lengths:
The minimum saddle heights are listed below. The maximum saddle height is +100mm. The seat post ideally needs to be cut to the exact length required by the rider so that the bottom of the seat post sits on the base of the seatpost cup. The maximum value is 90mm and the minimum value is 50mm inserted into the frame.
This hole is the lowest point of the seat post
