Valar DT56 Rim Brake wheels are made with Toray T800 carbon fiber. Our engineers have optimised the rim carbon layup, with high tensile strength carbon fiber at the most crucial points to provide rims stiffness.
Valar DT Series assembled the latest generation of the DT240 hub for the rim brake version, with the latest 240S ratchet exp freehub system to increases the bearing lifetime thanks to the increased bearing distance.
The new version of the end caps simplifies the tool-free disassembly and makes maintenance easier. The hollow-machined ratchets transfer the energy invested directly into acceleration thanks to the 36 teeth.
They use thinner prepregs for better control over the layup, which make the same wall thickness but comes with more layers, and bring a lighter weight with better stiffness.
Zero-Coating Design on carbon products surface is a top notch and difficult technology, unquestionably it’s a trend on high-end carbon products! Actually, just a few factories have mastered the technology！Zero-coating technology shows the fine fiber structure of the carbon rim giving each wheel an individual touch and reducing the rim weight.
Valar DT Series Rims made with Zero-Coating Technology on marbling surface, it saves about 15g per rim, we paint clear coating on 25% surface, and the rest of area keep marbling carbon fiber as it came out of the mould, we think this design looks beautiful and unique. Our 56mm Depth Valar DT56 rim’s weight is 1475g(±15g)per set.
DT45 (Rim Brake Wheelset)
Ultralight 56mm height Toray T800 carbon fiber rim
Aerodynamic profile with marbling surface

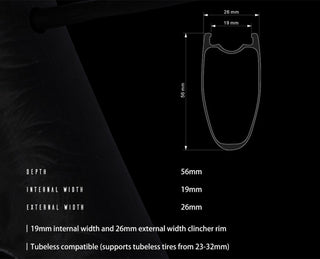

19mm internal width and 26mm external width clincher rim
Tubeless compatible (supports tubeless tires from 23-32mm)
Zero-Coating Finished Technology
DT Swiss 240 hub with Ratchet EXP structure
Supplied with standard Shimano compatible 11s freewheel body

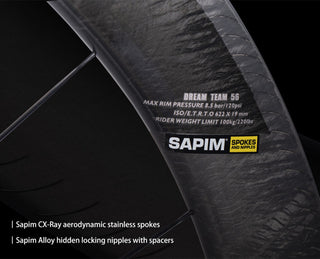

Sapim CX-Ray aerodynamic stainless spokes
Sapim Alloy hidden locking nipples with spacers

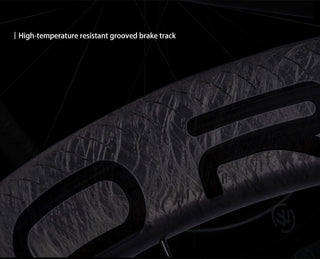

High-temperature resistant grooved brake track

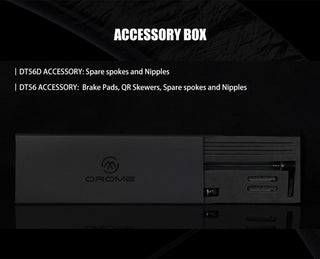

Accessories: Brake Pads, QR Skewers, Spare spokes and nipples.
Elves warranties all OROME Valar carbon wheel set from manufacturer’s defects in materials and workmanship specifications from a limited period of 2-years from the date of purchase!
This warranty is only for the original wheel set owner and is not transferable! Unless otherwise stated, the sole remedy under this warranty or any implied warranty is limited to the replacement of defective parts with those of equal or greater value at the sole discretion of Elves. Elves will not be responsible for any direct, incidental or consequential damages, including, without limitation, damages for personal injury, property damage, or economic losses, whether based on contract, warranty, negligence, product liability or any other theory. This warranty does not cover normal wear and tear on parts in situations where there are no material defects. This warranty does not cover consumable components including brake pads, spokes, rim tapes, bearings, etc
Bicycle maintenance requires special knowledge and tools. If in doubt, consult a reliable and experienced bicycle mechanic. You need to regularly check the bicycle and wheels, and make some replacements if necessary to maintain a high performance. Please consult the manufacturer for specific instructions on servicing other components.
The OROME Valar carbon clincher wheel set uses clincher or wired-on tires(only).
When installing or removing your clincher tires, do not use metal tire levers.
The maximum inflation on this wheel set is 120psi and maximum inflation for tubeless tire is 100psi; Overinflation may damage the rim.
Use only carbon-specific brake pads; Wrong brake pads could damage your carbon rims.
Modifying the wheel set (including hubs, spokes, nipples or rims) in any way will void the manufacturer‘s warranty and may be unsafe.
