Vanyar is our climbing bike, is the lightest frame that Elves have ever made. One-Piece Molding (OPM) technology and strategic use of T1000 Toray® carbon fiber ensure Vanyar lighter, higher stiffness.

Ordering a frame takes about 6-8 weeks.

When you choose a colour, the frame takes about 1-2 weeks to be painted and prepared to be shipped.

Orome Handle Bar can be ordered here.

Watch the video here:

https://elvesbike.com/movie/vanyar-chame.mp4

Vanyar is the lightest frame that Elves have ever made; it is born to race and is a real pro-level race-bike! One-Piece Molding (OPM) technology and strategic use of T1000 Toray® carbon fiber ensure the Vanyar is lighter, with higher stiffness, and offers the ideal blend of light overall weight and targeted stiffness! So it is the most expensive road frame in Elves family, Vanyar is created by our highest quality carbon fiber and has passed rigorously testing. The Vanyars' professional geometry design is a pro-level race bike.

See Geometry Sheet

Available Colours:

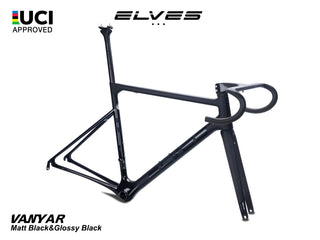

Matt-Black & Glossy-Black

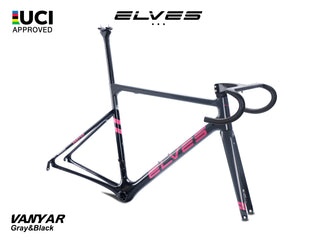

Gray & Black

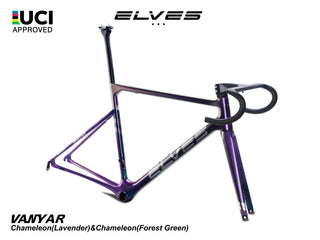

Chameleon (Lavender) & Chameleon (Forest-Green)

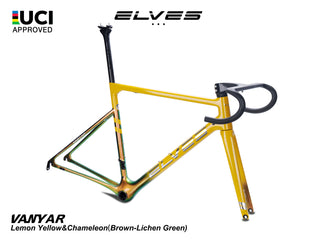

Lemon-Yellow & Chameleon (Brown-Lichen-Green)

Elegant-Blue & Chameleon (Navy-Blue)

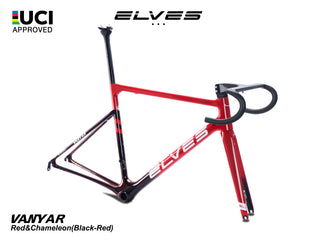

Ferrari-Red & Chameleon (Black-Red)

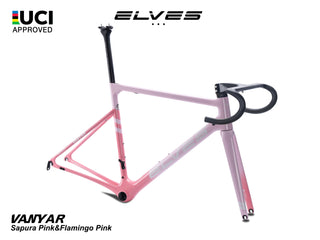

Sapura-Pink & Flamingo-Pink

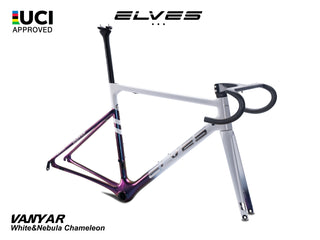

White & Nebula-Chameleon


PAINT CUSTOMIZABLE (POA)



 Frame

  • FRAME: FULL-CARBON (TORAY T800 & T1000 CARBON FIBER)
  • GEOMETRY: PRO
  • SEAT CLAMP: INTEGRATED
  • WEIGHT: 750G (SIZE 46)
  • HEADSET: 1-1/2"LOWER,1-1/8"UPPER
  • BRAKE: Rim Brake
  • BOTTOM BRACKET: BB86
  • ELECTRIC DRIVETRAIN: Di2 & E-TAP COMPATIBLE
  • OPM (ONE PIECE MOLDING) TECHNOLOGY
  • INTEGRATED CABLE ROUTING

Fork

  • FORK: FULL-CARBON FORK
  • WEIGHT: 365g
  • OFFSET: 45mm
  • BRAKE: Rim BRAKE
  • STEER TUBE LENGTH: 300mm

Seat Post

  • LENGTH: 350mm
  • WEIGHT: 165g
  • TWO BOLT PIVOT PRECISE ADJUSTMENT
  • DIAMETER: 27.2mm
  • OFFSET: 0mm AND 25mm SEATPOST AVAILABLE
  • SEATPOST: FULL-CARBON

Certification
  • BOTH EN 14766 AND ISO 4210-6:2014
Accessories
  • BB86, CERAMIC BEARINGS BB
  • ELVES HEADSET
  • REAR DREAILLEUR HANGER x2
  Size Vanyar (Black Paint)
Frame Weight 46 750g
48 775g
50 800g
52 805g
54 820g
56 835g
Fork Weight 365g
Seatpost Weight 165g



See Geometry Chart


Frame size 46-S 48-M 50-L 52-XL 54-2XL 56-3XL 58-4XL
Height(cm) 158-165 163-172 170-177 175-182 180-185 182-190 188-198
Seat Tube 460 480 500 520 540 560 580
Top Tube 506 512.6 521.8 535.1 547.7 563.1 583
Reach 374.5 378.7 385 385.4 387.5 393.1 395.4
Stack 490 499.5 501.1 521.8 540.9 561.8 580.9
RC 405 405 405 405 405 405 405
FC 563 570 575.1 575.1 582.9 591 607.9
CA 75 75 75 74 73.5 73.25 73
HA 72 72 72.5 73 73 73.5 73.5
BB 69 69 69 69 69 69 69
HT 90 100 100 120 140 160 180
